The Gallo Roman Dodecahedron:
A Specialized Contract-verification Tool for Roman Auxiliary Polearm Weaponry Logistics

Screenshot 2026-01-30 at 12.30.25 PM.png

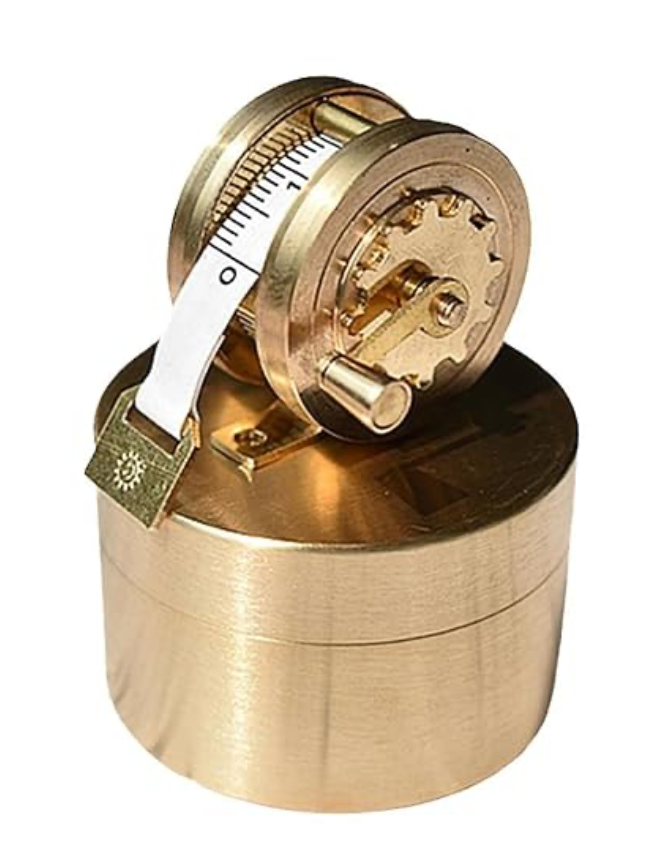

Some (parts of) Tools don't necessarily show wear

...sitting on a desk/shelf as a commemorative contract tool, in a Praefectus Castrorum's, Cohortis', Fabrum's or Equitatus' office, OR when the object is
measuring wood, this bronze object doesn't necessarily receive material damage, but metal-on-metal contact on certain areas of certain models of a tool's surface can reveal it's history.

The Gallo Roman Dodecahedron: A Specialized Contract-verification Tool for Roman Auxiliary Polearm Weaponry Logistics

​

A Historical & Technical Hypothesis by R.A. - 2021-2023

​

Executive Summary

​

The Roman dodecahedron (or "dod") was likely a sophisticated multi-purpose tool—a "Swiss Army" instrument of the Roman frontier. Originating in the Northwest Gallic and Germanic regions, these objects served as commemorative contract-verification tools and standardized "spec keys" for military procurement. Produced by Gallic vici blacksmiths for negotiatores (arms merchants) and auxiliary officers, they provided a physical benchmark for quality control and maintenance. Specifically, the dodecahedron functioned as a gauge for wooden polearm shafts for ‘rough’ dimensions prior to mating with their future weapon-heads, ensuring standardization across diverse auxiliary units. While some served as stationary administrative records, others—particularly those dod models with large, opposing apertures—were utilized for active equipment maintenance in the field.

​

​

Debunking Current Theories

​

Before examining the "Tooling" theory, we must address the flaws in popular alternative explanations:

​

  • Coin Measurement: While some suggest they measured currency, early AD Roman coins were hammered, not cast. They lacked the perfect circularity required for these holes. Furthermore, the debasement of silver (and other metals) meant value was determined by weight and material, not the diameter.

  • Knitting Tool: "French knitting" relies on the number of pegs, not the size of the holes. Additionally, many Dodecahedrons are too small for hand-knitting and the knob shape is not efficient for knitting.

  • Jewelry Winding Tool: The knobs are not shaped to efficiently wind wire.  Five pegs would limit the wire winding to only one look (same limitation as why it wouldn’t be a Knitting tool – “French knitting” relies on the number of pegs, not the sizes of the holes). Many dod models don’t have two, similar size holes for a “jewelry winding” dowel to pass through and be somewhat snug.  Also, there would be wear on the 5 opposing hole pairs if metal was forced through the holes.  Finally, no jewelry artisan would scratch up their wire jewelry by scraping it against a metal hole.

  • Range Finders: The lack of numerical markings and the wide variation (no two found alike) in size/ratios between finds make them impractical for standardized ballistics. Some hole pairs would require the user’s arm to be impossibly long to achieve coincidence (or if used with a knotted string for distance calcs, the dod would be so far away, one couldn’t effectively see whether coincidence was achieved).





Why was the Dod needed and secondarily (which is related), why was it not standardized across the areas it was found?

​

  • Due to the auxiliary troops being formally added to the military machine and then added in massive #'s (along with the allowance to let them use their own weapon specs) initially, there was a need to Standardize/record the Localized Tribal Specs for polearms, per area and/or garrison in the areas of the Empire where procurement was localized: Roman auxiliary troops were historically raised from specific tribes (Galli, Aedui, Batavi, Remi and many others) and often retained their traditional weapon types (initially). Since these tribes had varying smithing traditions, a "one size fits all" gauge from Rome would be useless. The unique hole configurations on each dodecahedron (dod) allowed a garrison/or Legion arms officer and contracted merchant to manage the specific "tribal specs" of their particular auxiliary garrison and/or different tribes within mixed or larger garrisons.  Yes, these specs could/would be rigged in a wood form in the many workshops (you’ll see the reason wood would not be used further down in this paper), but the dod was the ceremonial record and robust, traveling, compact model for the administration (or the contracted merchant) to ensure consistency of arms.  Some dods have been utilized on a lower, line level, though (either initially, concurrently, or at a later date).



* The Vindolanda Tablets and epigraphic stamps confirm that Roman supply chains were sourced locally in the N&NW provinces, rather than centrally/regionally mass produced.

​



The Commemorative value:

​

When a new Roman auxiliary garrison was formed by the Legions, from a group of similar tribesmen, Roman standardization and logistics were applied.  Once the specs of the polearms were refined to an average standard for that particular tribe, these specs were codified/commemorated for the administration and/or the merchant holding the contract by a/the local Vicus or area Vicus…… a dod was born.  It’s the record of the contract (without words) between the supplier and the customer.  When the garrison was replaced, or troops transferred, troops wiped out, or specs changed, that particular dod became obsolete (or travelled with the merchant/arms officer to the new garrison).  If the troops were disbanded/wiped out, or specs changed, the dod ‘went in the junk drawer in the kitchen’ (as they say), or kept as a trinket (kind of like current day people saving old technology like old cameras, tools, calculators, etc.).

​​

​

​

The Functional Utility: Weapon Procurement and Maintenance

​

The Dodecahedron’s design aligns perfectly with the needs of the 1st–3rd century Roman auxiliary military supply chain (this is the time period when the auxiliaries were being made part of 'the Roman machine' but still separated somewhat by their traditional gear specs):

​

​

1. Quality Control & Measurement

​

The holes served as "go/no-go" gauges for wooden weapon shafts. When it wasn’t sitting ona desk or shelf in an office, these merchants and auxiliary arms officers used them to verify:

​

  • The 'rough' taper profile required to fit into the garrison's metal weapon head sockets (most cases). Final fit to be completed as needed.

  • The taper profile of the wood shaft, just outside of where/what the weapon head socket would cover (in some cases)

  • Centering and marking (line level use with some dods): Inscribed circles around five pairs of the openings (on many of the Dod models) acted as jigs to center and then mark the shafts on the end with a circle at the socket size(s) desired, for tapering…starting with the larger hole end of the future shaft taper (if un-tapered shafts were purchased)





2. Mechanical and Measurement Maintenance

​

The characteristic knobs at each vertex are not foremost, decorative—they are functional:

​

  • Mechanical Leverage (for weapon head removal): On the dod models that sported two, large opposing openings, a "lock bar" could be wedged between (wrapped around) two non-consecutive knobs. This provided the leverage ‘stop’ needed to twist a fused metal weapon head off a shaft that had swollen due to moisture or become fused by oxidation.  The dod need not be thick to perform this function.  The force is evened out over two knobs.  Occasionally a knob would break off (whether it was due to head removal on the models with the two, large opposing openings, or due to tie-down stress, etc.).  The pin would be spot welded back to the vertex.  There are examples of these dods (Carnuntum, Tongeren, for instance, and others).

  • The "Stop-Gap" Elevation for precise measurment: (all dod models) The knobs elevate the tool, ensuring the wooden shaft doesn't hit the table/work surface before reaching its measurement "pinch point." This explains why knob sizes vary—they calibrate the height for specific socket depths.

  • Grip & Leverage: The knobs provide a surface to grip or tie down the tool when measuring shafts.  The knobs were round to keep the tie-downs from slipping off. The rounded shape allowed the tool to be gripped with rags for extra leverage when pulling heads off blades on certain dod models (cloth and/or leather bindings were used to protect the shoulders of the weapon blade and the dod).

  • Protection: The knobs protected the dod surfaces/openings from incidental wear.  They were round was to protect the surface they were sitting on, regardless of which lower face was parallel to a sitting surface, and to protect hands when gripping.​



3. Regional/Area/Garrison Standardization

​

The variation in Dodecahedron sizes reflects the diversity of the Roman Auxilia. Unlike the standardized Legions, auxiliary troops used tribal-specific weapons. The Dodecahedron allowed local Vici blacksmiths and merchants to maintain "spec keys" for specific tribal contracts (e.g., specific javelins, spears, or occasionally round-socketed pilums).



​

Archaeological Evidence

​

Contextual Evidence for the Military Theory

​

  • Distribution: A significant number of dodecahedra have been found at Roman military sites, such as auxiliary forts along the Rhine and Danube frontiers and Hadrian’s wall (and many other forts - Here are some examples of dods found in military sites -> Vindonissa, Feldburg, Carnuntum, Mainz, Bonn, South Shields, New Castle, Cardiff, etc.).

  • Logistics: Maintaining a constant supply of replacement shafts was critical for auxiliary units (the troops were not at war continually, but trained daily - shafts were damaged on a continual basis).  Dods ensured local Vici artisans produced shafts that met specific regional/or troop/garrison specific weapon specs without needing centralized Roman oversight.

  • Material Choice: Unlike most measuring tools, these are made of cast bronze, which is durable and resistant to oxidation & the wear and tear of a frontier or workshop environment.

  • Wear and Tear: Contrary to misinformation propagated in publications (that this can’t be a tool because there is little to no wear), many specimens DO show chips, dents, and scrape marks around the models with two, large opposing openings—consistent with heavy contact against metal, possibly weapon sockets and pry/hard-edge bars [the following dod models have two, large opposing openings & do show wear: Jublians dod; Reims (Marne) dod at old Collection de Baye, Musée des Antiquités Nationales, Saint-Germain-en-Laye, inv. No. 68333 dod; Carnumtum dod; Feldburg dod (in the Saalburg fort museum); Avenches dod; Maastricht dod (the broken one - the piece with the large opening - this dod was found during work in 2010, on the A2 tunnel); and others, also.. Some other dods (that don't have two, large opposing openings shows dings, chips, scrapes, also....the Corbridge dod for instance, and others)].  The five other opposing openings of an average dod usually show minimal wear as they were used for occasional wood to metal measuring.  Because these five opposing openings usually show little wear, doesn’t mean the dod is not a tool.  All tools/measuring devices do not need to show wear.  In addition, light & occasional wood-to-metal contact will not result in material wear.

  • Height Dimensions match: (dodecahedron heights between parallel faces) Dodecahedrons (unearthed) vary in size (4-11 cm), which would allow for a range of shaft sizes to be measured, aligning with the range of socket lengths found on Roman-era, particularly auxiliary weaponry.

  • Socket Correlation: The diameters and tapers of excavated weapon sockets in Gaul and Britannia align closely with the internal measurements of known Dodecahedrons.    â€‹



Auxiliary Socket Dimensions (2nd–3rd Century)



Archaeological finds from auxilia forts and/or frontier zones (such as the Antonine Wall,  and Hadrian's Wall) show the following ranges for Outside Diameters (OD) at the socket mouth:



Light Javelins (Lancea / Verutum):

​

  •  External Socket Diameter (@mouth): 15mm to 19+mm.

  •  Internal Socket Diameter (@mouth): 11mm to 15mm.

  •  Usage: these were used by auxiliary skirmishers/cavalry. The narrow sockets allowed for very thin,  aerodynamic shafts that could be thrown repeatedly (often 3+ per soldier).



Standard Auxiliary Spears (Hasta):

​

  • External Socket Diameter (@mouth): 20mm to ~25+mm.

  • Internal Socket Diameter (@mouth- doesn’t include taper): 16mm to 22mm.

  • Usage: Hasta were standard thrusting spears used by auxiliary infantry (cohortes) in defensive lines. The sockets were slightly larger than javelins to accommodate thicker, less flexible ash shafts.



Auxiliary Spears (Hasta):·  Cavalry Lances (Contus):

​

  • External Socket Diameter (@mouth): 25mm to 34+mm.

  • Usage: Specifically for the heavy cavalry (ala) troops. The Hasta needed larger sockets to support the larger diameter shafts needed for direct, shock-mounted warfare.

​

 **the above are measurements at the mouth of the socket.  These measurements match the larger openings on the dods (not necessarily the dod models with the 2, large, similar size opposing openings – those openings were for weapon head removal, so those holes would be slightly larger than the shaft, in most cases).  After wood shaft tapering, the mm measurements would be smaller, to coincide with the smaller openings on the dods.





FAQ

​

Why is the Dod (more or less) only found in the N and NW Roman Frontier?

​

  • Geographic Isolation: The concentration of the dod in the North and Northwest provinces (Gaul, Britain, Germania Inferior and Superior) is no coincidence. These were the areas with the highest density of semi-autonomous auxiliary units using ‘locally sourced’ equipment, unlike the more "standardized" Mediterranean heartlands.



Why are there no/limited markings?

​

  • It’s normal for military tools/hardware to have limited markings.  Reasons include enhanced operational security, reduce visibility to enemy forces, and to prevent easy identification of unit affiliations (such as weapon specs).  In addition, the dod was produced by the Vici’s smiths, as an auxiliary polearm spec record and they did not want to be traced back to the smith, for later retribution by a potential, future authority.



Why make it in a 3D shape and not a flat, double plate?

​

  • This kind of goes along with why there are limited markings.  It’s a military arms officer/arms merchant tool.  It’s 3D shape and lack of most markings obscures its use and the holder’s profession to enemies/enemy agents when outside the safety of a fort, etc.  Also, in addition to serving as a go/no-go gauge, it is a commemorative record for a high ranking arms officer or wealthy merchant (kind of like a mont Blanc pen vs. a Bic pen – both have utility).  One may say, why would you have a high quality commemorative record (object) for use in the field as opposed to sitting on a desk or shelf for limited use?  Well, it can be used for both (it’s durable bronze).  It's just the high dollar version (kind of like a Milwaukee/Makita hand drill vs. a Black and Decker hand drill).



What about the Icosahedron:?

​

  • This is a false equivalency fallacy (‘apples and oranges’).  In addition, only one was found and it was materially more decorative.  Also, it has more sides without all the larger openings.  It was placed immediately near 2 dods in a museum display case, and it keeps having to be explained away…it is not of the same use.  The museum should move it to another case, to halt the speculation.



Why would an arms officer or arms merchant have utilized the dod over just measuring with string, a caliper or wooden gauge?

​

  • Strings, calipers, and wooden gauges existed, but they each had efficiency and/or accuracy failures in a high-stakes military logistics environment.

  • Wooden gauges warp, swell, and rot; strings stretch when wet and shrink when dry. A "standard" inch measured with string in a rainy camp in Britannia near Hadrian’s Wall would not match a measurement taken in a dryer workshop in Lyon.

  • functions as a Limit Gauge. You don’t have to spend time to "read" a Dodecahedron; you simply check if the wood passes through the hole

  • it measures two points at the exact locations needed, instantly (at the same time – it’s efficient) without slipping on a slope (vs. string or calipers)

  • The Dodecahedron acted as the Physical Contract. An officer could hand the Dod to a local Vicus woodshop/smith and say: "The shafts must pass through Face Y and seat in Face X, without hitting the table (knob clearance) etc."  This eliminated language barriers and math errors, creating a universal "Spec-Key" for local procurement.





Were they purely workshop tools?; would we might expect to see more "rough" versions?:

​

  • They’re not purely workshop tools; they’re also a commemorative recordation tool for officers/arms merchants and many dods were not commonly utilized for line-level daily use (some were though, either initially, or at a later date, or as a back-up to line-level tools, when officially out of service/discarded/needed).  “Rough” versions most likely existed in the workshops (some different dimensional jigs may have been made of wood but wood wears down, warps, expands and contracts, and loses its dimensional integrity over time -> metal is preferred).  Any wood versions may have been disposed of and/or disintegrated over time so have not been unearthed.  The dod is a compact, prestige item, with limited markings due to its military nature.  You wouldn’t advertise its use outside of its area of service, for operation and personal security.



Why were four or more dods found in graves or hordes?

​

  • This early AD period was marked by the prosperity of the merchant class engaging in high demand trade with the military, including a notable number of wealthy widows who managed their late husbands' estates.  To protect their assets during times of instability, individuals often buried their metal wares and valuables. This connection to material wealth extended to the afterlife, as it remained common practice to bury personal treasures and professional tools alongside the deceased.



Are dods difficult to create by a blacksmith?

​

  • No, they are not difficult to create.  That’s why the argument that it’s complex (and why something simpler wasn’t made) doesn’t hold weight.  It’s not that someone pushing that argument is willfully ignorant or an epistemic trespasser, but more that they don’t know enough about a subject (casting) to know what they don’t know.  While the dod is complex in appearance, it is not for a smith experienced in lost wax casting.  It is an assembly task, not a complex artistic sculpture.  There is no need for an artist to carve a 12-sided figure out of a solid block of wax.  Instead, the smith himself will cut 12 flat pentagons from a sheet of soft wax.  Each pentagon is easy to pierce with a circular hole for the auxiliary troops shaft specs.  Using a heated tool, the 12 pentagons are melted together along their edges to form the hollow dodecahedron structure.  Wax is easy to re-heat at joints, allowing for quick adjustments, to manage the complex geometry.  It looks difficult, but is not (for an experienced caster).  It is 3-5x plus more difficult to make a sword or a metal helmet, in terms of material management, skill and the amount of labor hours.



Why were there limited markings on the dods?



  • Limited markings on military hardware, such as on weapons and tools, are designed to enhance operational security, reduce visibility/identifiability of arms merchants to enemy forces or enemy allies outside the security of the Vici/fort, and to prevent easy identification of unit affiliation or specs during travel.



Why are the dods hollow?

​

  • For ‘seating’ views/material conservation: the hollowness allows the user to see the "seat" of the wood shaft through the side openings to check for light/gaps/linear continuity.  Being hollow allows one to mark the spot on a shaft (from the other openings) of a partially completed taper, where it is out of spec, for further tapering/rejection reasoning.  In addition (secondarily/tertiarily), as a commemorative or line-level record/tool, it saves on the production cost (metal content).

  • To allow debris, shavings or moisture to fall through the openings, rather than clogging the gauge.



Why are the dods made of Copper alloy and not iron or wood?:

​

  • Cast bronze was preferred for tools interacting with iron and wet objects/wood.  This is due to bronze’s exceptional corrosion resistance, non-sparking quality when encountering iron in areas with combustible wood dust, substances or vapors (Pitch and Tar, Animal Fats and Oils, Beeswax, etc.), low-friction properties when receiving iron or wood contact, and durability.

  • Bronze is ideal for humid regions and/or workshops full of combustible materials.  The northern and northwestern areas of the Roman provinces (e.g., Britain, Gaul, Germania Superior and Inferior) were significantly more humid compared to the center of the Mediterranean areas of the Empire; characterized by thick forests, frequent rain and fog.  Wood tools expand and contract, & warp with humidity and wear down quickly, losing their dimensional stability & iron rusts/oxidizes & sparks; thus Bronze is a better choice.  In addition, Bronze is more efficient/easier to cast (lower melt temp) than iron.



Why did the dod disappear?



  • Timeline of Disappearance: The disappearance of dodecahedrons in the late 3rd and early 4th centuries aligned with the debasement of the denarius (silver devolved to plating) and the subsequent military reforms (Notitia Dignitatum). As the Empire moved toward a centralized command economy with state-run fabricae (mass-production arms factories), the need for local "tribal-spec" calibration tools disappeared, in favor of standardized Roman ware.



Conclusion

​

  The Dod was the key to perpetuating Roman ‘auxiliary’ polearm specs & their uniformity, quality & standardization (per tribe group and/or garrison).

It was a commemorative record of specs, & in many cases (initially or subsequently), a portable, durable, and multifunctional gauge that ensured the Roman war machine remained well-equipped on the frontier regions, where arms/supplies were locally sourced.  You could call the dod an early model of the "Swiss Army Knife."



​

© R.Allday. (Jan–July 2023)

​
